技術數據-UL/CUL

等 Use Group

B

C

D

等 Use Group

150

-

-

額定電流 Rated Current [A]

4

-

-

接線范圍 Wire Range [AWG]

26~18

耐電壓 Dielectric Voltage-Withstand

1.3KV

技術參數-IEC

過電壓類別 Overvoltage Category

III

III

II

污染等 Contamination Class

3

2

2

額定電壓 Rated Voltage [V]

63

160

320

額定電流 Rated Current [A]

6

6

6

額定沖擊電壓 Impulse withstand voltage [KV]

2.5

2.5

2.5

導線截面積[硬/柔] Conductor cross section [mm²]

0.2~0.5

材料 Material

緣材料 Insulation Material

PA66

阻燃等 Flame relardant rating

UL94-V0

導體材料 Conductor Material

Copper alloy

導體表面鍍層 Plating of conductor surface

Sn plated

般參數 Other Data

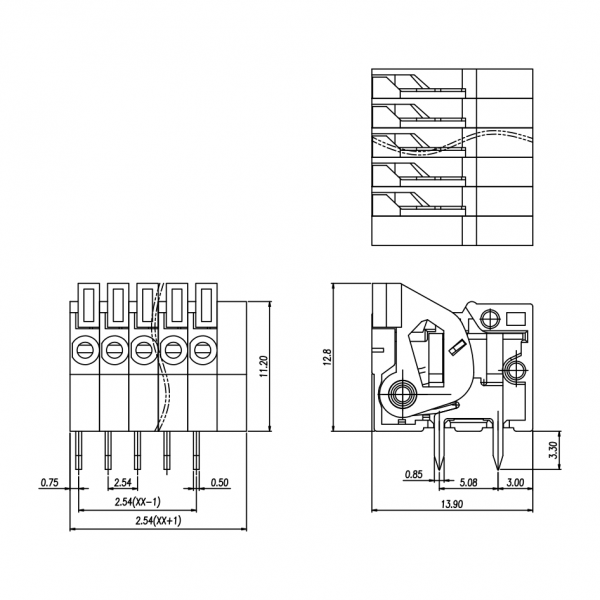

間距/ 數 Pitch/Poles [mm]/[P]

2.54/1~30

剝線長度 Stripping Length [mm]

11

螺絲/扭矩 Screw/Torque(Max)[N.m]

/

工作溫度 Operating temperature [℃]

-40~+105

焊錫溫度 Soldering temperature

250℃/5S

引針尺寸 Pin dimensions [mm]

0.8*0.5

PCB板孔徑 PCB Hole Diameter [mm]

∅1.1
